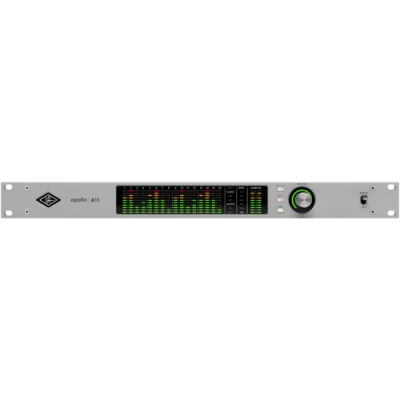

Universal Audio Apollo x16 Gen 2 Thunderbolt 3 Audio Interface with Ultimate+ Bundle
₹478,335.00₹478,335.00×
“Universal Audio Apollo x16 Gen 2 Thunderbolt 3 Audio Interface with Ultimate+ Bundle” has been added to your cart. View cart
Focusrite Clarett OctoPre 8-Channel Mic Pre & AD/DA Converter
Rated 0 out of 5
0 Reviews
SPECIFICATIONS:
SUPPORTED SAMPLE RATES
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
MICROPHONE INPUTS
- Frequency Response: 20 Hz - 35 kHz ±0.1 dB
- Dynamic Range (Without Insert): 118 dB (A-weighted)
- Dynamic Range (With Insert): 115 dB (A-Weighted)
- THD+N: 0.001%
- Noise EIN: –128 dBu (A-Weighted)
- Maximum input level: +18 dBu ±0.5 dB
- Gain Range: 57dB
- Frequency Response: 20 Hz - 35 kHz ±0.1 dB
- Dynamic Range (Without Insert): 117 dB (A-weighted)
- Dynamic Range (With Insert): 115 dB (A-Weighted)
- THD+N: 0.001%
- Maximum input level: +26 dBU ±0.5 dB
- Gain Range: 57dB
- Frequency Response: 20 Hz – 35 kHz ± 0.1 dB
- Dynamic Range (Without Insert): 116 dB (A-weighted)
- Dynamic Range (With Insert): 114 dB (A-Weighted)
- THD+N: 0.001%
- Maximum input level: +14dBu ±0.5 dB
- Gain Range: 57dB
- Dynamic Range (Line Outputs): 118 dB (A-Weighted)
- Maximum Output Level (0 dBFS): +16 dBu, balanced
- THD+N: 0.0007%
Focusrite Clarett+ 2 Pre
Rated 0 out of 5
0 Reviews
Mic Inputs
Frequency Response 20-20kHz: ± < 0.03dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, +20dB gain): -110dB
Noise EIN: -129dBu
Max input level: 18dBu
Gain range: +57dB
Line Inputs (Variable)
Frequency Response 20-20kHz: ± < 0.05dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, min gain): -100dB
Max input level: 26dBu
Gain range: +57dB
Instrument Inputs
Frequency Response 20-20kHz: ± < 0.04dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range: 116dB
THD+N (-1dBFS, min gain): -96.5dB
Max input level: 15dBu
Gain range: +57dB
Line & Monitor Outputs
Frequency Response 20-20kHz: ± < 0.02dB
Frequency Response 20-35kHz: ± < 0.02dB
Dynamic Range: 124dB
Max Output level: 18dBu
THD+N: -106dB
Headphone Outputs
Frequency Response 20-20kHz: <0.06dB
Frequency Response 20-35kHz: <0.07dB
Dynamic Range: 118dB
THD+N: -104dB
Max Output level: 16dBu
Focusrite Clarett+ 4Pre
Rated 0 out of 5
0 Reviews
Mic Inputs
Frequency Response 20-20kHz: ± < 0.03dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, +20dB gain): -110dB
Noise EIN: -129dBu
Max input level: 18dBu
Gain range: +57dB
Line Inputs (Variable)
Frequency Response 20-20kHz: ± < 0.05dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, min gain): -100dB
Max input level: 26dBu
Gain range: +57dB
Line Inputs (Fixed)
Frequency Response 20-20kHz: ± < 0.05dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range: 118dB
THD+N (-1dBFS): -100dB
Max input level: +18dBu
Instrument Inputs
Frequency Response 20-20kHz: ± < 0.04dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range: 116dB
THD+N (-1dBFS, min gain): -96.5dB
Max input level: 15dBu
Gain range: +57dB
Line & Monitor Outputs
Frequency Response 20-20kHz: ± < 0.02dB
Frequency Response 20-35kHz: ± < 0.02dB
Dynamic Range: 124dB
Max Output level: 18dBu
THD+N: -106dB
Headphone Outputs
Frequency Response 20-20kHz: <0.06dB
Frequency Response 20-35kHz: <0.07dB
Dynamic Range: 118dB
THD+N: -104dB
Max Output level: 16dBu
Focusrite Clarett+ 8Pre
Rated 0 out of 5
0 Reviews
Mic Inputs
Frequency Response 20-20kHz: ± < 0.03dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, +20dB gain): -110dB
Noise EIN: -129dBu
Max input level: 18dBu
Gain range: +57dB
Line Inputs (Variable)
Frequency Response 20-20kHz: ± < 0.05dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, min gain): -100dB
Max input level: 26dBu
Gain range: +57dB
Instrument Inputs
Frequency Response 20-20kHz: ± < 0.04dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range: 116dB
THD+N (-1dBFS, min gain): -96.5dB
Max input level: 15dBu
Gain range: +57dB
Line & Monitor Outputs
Frequency Response 20-20kHz: ± < 0.02dB
Frequency Response 20-35kHz: ± < 0.02dB
Dynamic Range: 124dB
Max Output level: 18dBu
THD+N: -106dB
Headphone Outputs
Frequency Response 20-20kHz: <0.06dB
Frequency Response 20-35kHz: <0.07dB
Dynamic Range: 118dB
THD+N: -104dB
Max Output level: 16dBu
Focusrite Scarlett 18i16 4th Gen
Rated 0 out of 5
0 ReviewsProduct Hardware Specifications
- Number of Microphone Preamps: 4
- Phantom Power: Yes (Independent)
- Instrument Inputs: 2
- Line Inputs: 8
- Air Mode: Yes
- Auto Gain: Yes
Focusrite Scarlett 18i20 4th Gen
Rated 0 out of 5
0 ReviewsProduct Hardware Specifications
- Number of Microphone Preamps: 8
- Phantom Power: Yes (Independent)
- Instrument Inputs: 2
- Line Inputs: 8
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 10
- Headphone Outputs: 2
- ADAT Inputs: 2
- ADAT Outputs: 2
Focusrite Scarlett Octo Pre
Rated 0 out of 5
0 ReviewsSUPPORTED SAMPLE RATES
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
MICROPHONE INPUTS
Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
Dynamic Range: 109 dB (A-Weighted)
THD+N: <0.001%
Noise EIN: -127 dBu
Maximum input level (without pad): +8 dBu
Maximum input level (with pad): +16 dBu
Gain Range: 50 dB
Input Impedance: 3 kΩ
LINE INPUTS
Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
Dynamic Range: 109 dB (A-Weighted)
THD+N: <0.002%
Maximum input level: +22 dBu
Gain Range: 50 dB
Input Impedance: 49 kΩ
INSTRUMENT INPUTS
Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
Dynamic Range: 108 dB (A-Weighted)
THD+N: <0.01%
Maximum input level: +13 dBu
Gain Range: 50 dB
Input Impedance: 1 MΩ
LINE OUTPUTS
Maximum Output Level (0 dBFS): +16dBu @ 0dBFS, or >21dBu where ADAT output is not used
THD+N: <0.001%
Ouput Impedance: 136 Ω (Balanced)
Focusrite Scarlett OctoPre Dynamic
Rated 0 out of 5
0 Reviews| Preamp Type | Solid State |
| No. of Channels | 08 |
| Phantom Power | Yes |
| Compression | Yes, per channel |
| Analog Inputs | 8 x XLR-1/4" combo |
| Analog Outputs | 8 x 1/4" |
| Digital Inputs | 2 x Optical Toslink (ADAT) |
| Digital Outputs | 2 x Optical Toslink (ADAT) |
| Other I/O | Clock I/O |
| Rackmount Space | 1U |
| H x W x D | 1.75" x 19" x 11.3" |
| Weight | 3.4 kg |
Categories: Audio Interface
Focusrite Scarlett Solo Studio Pack (Generation 4)
Rated 0 out of 5
0 Reviews- 24-bit / 192 kHz
- Focusrite Rednet series converters with 120 dB dynamic range
- 1 Scarlett microphone preamp
- +48 V phantom power
- Switchable Air function
- Loopback function
- Dynamic Gain Halos for quick and easy adjustment of the recording volume
- USB bus-powered
- 1 microphone input: XLR
- 1 instrument/line input: 6.3 mm jack
- 2 line outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- USB-C connection for PC/Mac
- USB-C connection for an external 5 V (1000 mA) power supply (not included in the scope of delivery)
- USB-Powered
- Dimensions (W x H x D): 143 x 45.4 x 96 mm
- Weight: 0.382 kg
Native Instruments Komplete Audio 1
Rated 0 out of 5
0 ReviewsAUDIO CONVERTERS
A/D Channels: 2
D/A Channels: 2
SAMPLE RATES:
44.1, 48, 88.2, 96, 176.4, 192 kHz
BIT RESOLUTION
24 Bit
HARDWARE CHARACTERISTICS
| KOMPLETE AUDIO 1 | KOMPLETE AUDIO 2 | |
| Output | unbalanced | balanced |
| Maximum output level | +12 dBu | +12 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.1 dB | 20 Hz - 20 kHz +/- 0.1 dB |
| Headphone | ||
| Maximum output level | +4.2 dBu (48 mW @ 33 Ohm) | +4.2 dBu (48 mW @ 33 Ohm) |
| Frequency response | 20 Hz - 20 kHz +/- 0.1 dB | 20 Hz - 20 kHz +/- 0.1 dB |
| Instrument input | ||
| Maximum input level | +10 dBu | +10 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.03 dB | 20 Hz - 20 kHz +/- 0.03 dB |
| Line input | ||
| Maximum input level | +20 dBu | +20 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.02 dB | 20 Hz - 20 kHz +/- 0.02 dB |
| Microphone | ||
| Maximum input level | +7 dBu | +7 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.02 dB | 20 Hz - 20 kHz +/- 0.02 dB |
Native Instruments Komplete Audio 2
Rated 0 out of 5
0 ReviewsAUDIO CONVERTERS
A/D Channels: 2
D/A Channels: 2
SAMPLE RATES:
44.1, 48, 88.2, 96, 176.4, 192 kHz
BIT RESOLUTION
24 Bit
HARDWARE CHARACTERISTICS
| KOMPLETE AUDIO 1 | KOMPLETE AUDIO 2 | |
| Output | unbalanced | balanced |
| Maximum output level | +12 dBu | +12 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.1 dB | 20 Hz - 20 kHz +/- 0.1 dB |
| Headphone | ||
| Maximum output level | +4.2 dBu (48 mW @ 33 Ohm) | +4.2 dBu (48 mW @ 33 Ohm) |
| Frequency response | 20 Hz - 20 kHz +/- 0.1 dB | 20 Hz - 20 kHz +/- 0.1 dB |
| Instrument input | ||
| Maximum input level | +10 dBu | +10 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.03 dB | 20 Hz - 20 kHz +/- 0.03 dB |
| Line input | ||
| Maximum input level | +20 dBu | +20 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.02 dB | 20 Hz - 20 kHz +/- 0.02 dB |
| Microphone | ||
| Maximum input level | +7 dBu | +7 dBu |
| Frequency response | 20 Hz - 20 kHz +/- 0.02 dB | 20 Hz - 20 kHz +/- 0.02 dB |
Native Instruments Komplete Audio 6
Rated 0 out of 5
0 Reviews- Connectivity: 6 inputs: 2x combo-XLR/¼” TRS line inputs with 48V phantom power, and gain control for flexible stereo recording, 2x ¼” TRS line inputs, 1x SPDIF digital stereo input (RCA) 1x MIDI in 6 outputs: 4x DC coupled ¼” TRS outputs for modular control*, 1x SPDIF digital stereo output (RCA), 1x MIDI out
- Audio Quality: Premium quality at 192 kHz / 24-bit
- 4x LED input VU meter
- 1x LED output VU meter
- 48V, USB, and MIDI status LEDs
- Direct monitoring with mono/stereo switch and channel switching (1-2 / 3-4) for blending audio playback while recording
- Big volume knob for quick volume adjustments
- 2x headphone out with high-power output and individual volume controls
- USB 2.0 bus-power – no additional power supply needed
- Compatible with Mac and PC (ASIO®/Core Audio/DirectSound®/WASAPI)
- Kensington Security Slot
STEINBERG IXO12 USB AUDIO INTERFACE
Rated 0 out of 5
0 Reviews| AD/DA | 24 bit | |
|---|---|---|
| Maximum Sample Rate | 192 kHz | |
| Dynamic range input | 107 [dB] | |
STEINBERG IXO12 USB AUDIO INTERFACE WHITE
Rated 0 out of 5
0 Reviews| AD/DA | 24 bit | |
|---|---|---|
| Maximum Sample Rate | 192 kHz | |
| Dynamic range input | 107 [dB] | |
Categories: Audio Interface
Steinberg IXO22 2x2 USB 2.0 24-Bit/192kHz Audio Interface With Cubase AI, Cubasis LE and Steinberg Plus Software
Rated 0 out of 5
0 Reviews- Support for up to 24-bit/192kHz audio quality
- 2 combo inputs with mute buttons, 1 hi-Z input, and 2 TRS line outputs
- 2 Class A mic preamps with switchable +48V phantom power
- Headphones output with independent volume control
- Direct monitoring switch offers latency-free direct hardware monitoring of input signal
- Loopback function facilitates effortless live internet broadcasting and streaming
- Compatible with Windows, macOS, iPad, and iPhone for uber-mobility
Steinberg IXO22 2x2 USB 2.0 24-Bit/192kHz Audio Interface With Cubase AI, Cubasis LE and Steinberg Plus Software
Rated 0 out of 5
0 Reviews- 24-bit/192 kHz USB 2.0 audio interface with 2 x 2 analog I/O
- Two combo inputs with mute button, Class A mic preamps and phantom power, plus one Hi-Z input
- Compact, lightweight metal casing, with two color options
- Direct monitoring and Loopback function for livestreaming
- Cross-platform compatibility with Windows, macOS and iOS, plus Cubase AI and Cubasis LE included
Steinberg Podcast Pack With IXO12 Audio Interface, Studio Condenser Mic, Pop Shield, Cable, Table Top Stand, Cubase AI, Cubasis LE, WaveLab Cast and Steinberg Plus Software
Rated 0 out of 5
0 Reviews- 24-bit/192 kHz USB 2.0 audio interface with 2 x 2 analog I/O
- One combo input with mute button, Class A mic preamp and phantom power, plus one Hi-Z input
- Latency-free hardware monitoring and separate headphone output
- ST-M01 studio condenser microphone with low noise cable, tripod stand and pop screen
- Cross-platform compatibility with Windows, macOS and iOS, plus Cubase AI, Cubasis LE, and WaveLab Cast included
Universal Audio Apollo SOLO Thunderbolt 3 (Heritage Edition)
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 (Mac/PC) |
| Simultaneous I/O | 02 x 04 |
| A/D Resolution | 24-bit/192kHz |
| Built-in DSP/FX | UAD-2 Solo Processing, Realtime UAD Powered Plug-ins |
| Audio Input Types | 2 x XLR-1/4" combo (mic/line), 1 x 1/4" (Hi-Z) |
| Audio Output Types | 2 x 1/4" TRS, 1 x 1/4" (headphones) |
| No. of Mic Preamps | 2 x mic, 1 x instrument |
| Phantom Power | Yes |
| Bus Powered | Yes |
| Rack Unit | No |
| H x W x D | 1.8" x 7.1" x 4.8" |
| Weight | 0.63 kg |
| Any other features? | Luna Recording System (Mac only), Realtime Analog Classics Plug-in Bundle (VST, AU, AAX 64) |
Universal Audio Apollo Solo USB Heritage Edition
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
Analog:
2 Inputs / 4 Outputs at 192 kHz |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
|
| Digital Audio I/O |
No |
| Host Connection |
1x USB-C |
| OS Compatibility |
Windows 10 (64-Bit Only) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
Analog:
2 Inputs / 4 Outputs at 192 kHz |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Built-In Microphone |
No |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
Mic:
-20 dB (Switchable per Channel) |
| Gain/Trim Range |
Mic/Line/Hi-Z Inputs:
+10 dB to +65 dB |
| High-Pass Filter |
75 Hz, 12 dB/Octave |
| Solo/Mute |
No |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power |
48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O |
No |
| Host Connection |
1x USB-C |
| Host Connection Protocol |
USB 3.0 / 3.1/3.2 Gen 1 |
| USB (Non-Host) |
No |
| Sync I/O |
No |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
Performance
| Frequency Response |
System:
20 Hz to 20 kHz ±0.1 dB |
| Maximum Input Level |
Mic Inputs:
+25.2 dBu (Min Gain, with Pad)
Line Inputs:
+20.7 dBu
Hi-Z Inputs:
+12.5 dBu (Min Gain) |
| Maximum Output Level |
Monitor Outputs:
+20.7 dBu |
| Headphone Output Power |
240 mW into 32 Ohms
62 mW into 300 Ohms |
| Impedance |
Mic Inputs:
5.5 Kilohms
Line Inputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Monitor Outputs:
100 Ohms |
| Dynamic Range |
Mic/Line/Hi-Z Inputs:
118 dBA
Monitor Outputs:
115 dBA
Headphone Outputs:
115 dBA (600-Ohm Load) |
| THD+N |
Mic Inputs:
-108 dBFS
Line Inputs:
-107 dBFS
Hi-Z Inputs:
-105 dBFS
Monitor Outputs:
-106 dBFS
Headphone Outputs:
-97 dB (600-Ohm Load)
-88 dB (32-Ohm Load) |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1.1 ms at 96 kHz (Input to Output) |
| Sync Sources |
Internal |
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows 10 or Later |
| OS Compatibility |
Windows 10 (64-Bit Only) |
| Processor Requirement |
PC:
Intel Core i3
Intel Xeon |
| Storage Requirements |
6 GB |
| Mobile Device Compatibility |
No |
| Required Hardware |
Available USB 3.0 / 3.1/3.2 Gen 1 Port
USB Cable (Not Included) |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC, Center-Positive (Included) |
| Power Consumption |
10 W |
Physical
| Operating Conditions |
32 to 95°F / 0 to 35°C at 20 to 80% Humidity |
| Storage Conditions |
-40 to 176°F / -40 to 80°C |
| Dimensions |
7.1 x 4.8 x 1.8" / 18.03 x 12.19 x 4.57 cm |
| Weight |
1.4 lb / 0.6 kg |
Packaging Info
| Package Weight |
3.255 lb |
| Box Dimensions (LxWxH) |
8.65 x 6.5 x 4.75" |
Universal Audio Apollo Twin X DUO Gen 2 Thunderbolt 3 Audio Interface with Studio+ Bundle
Rated 0 out of 5
0 Reviews
Universal Audio Apollo Twin X DUO Gen2 - Essentials Plus
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 |
| Simultaneous I/O | 10 x 06 |
| A/D Resolution | 24bit/192kHz |
| Built-in DSP/FX | Yes |
| Audio Input Types | 2 x XLR-1/4" combo (mic/line), 1 x 1/4" |
| Audio Output Types | 2 x 1/4" (monitor), 2 x 1/4" (line out), 1 x 1/4" TRS (headphones) |
| Digital Input Types | 1 x Optical Toslink (ADAT, S/PDIF) |
| No. of Mic Preamps | 2 x mic, 1 x instrument |
| Phantom Power | Yes |
| MIDI I/O | 1 x USB-C (Thunderbolt 3) |
| Bus Powered | No. 12V DC power supply included |
| Rack Unit | No |
| H x W x D | 2.6" x 6.3" x 6.1" |
| Weight | 1.04 kg |
| Any other features? | includes UA Essentials+ Plug-in Suite. DUO Core Processor. |
Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
10 Inputs / 6 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input |
| Host Connection |
1x USB-C (Class-Compliant) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
10 Inputs / 6 Outputs |
| Built-In DSP |
Quad-Core |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Built-In Microphone |
No |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
-20 dB |
| High-Pass Filter |
75 Hz |
| Solo/Mute |
No |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V |
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input |
| Host Connection |
1x USB-C (Class-Compliant) |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
No |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
20 Hz to 20 kHz ±0.05 dB |
| Maximum Output Level |
Monitor Outputs:
20.2 dBu |
| Headphone Output Power |
68 mW into 300 Ohms
38 mW into 600 Ohms |
| Impedance |
Headphone Outputs:
300 to 600 Ohms |
| Dynamic Range |
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Line Outputs:
128 dB
Monitor Outputs:
129 dB (A-Weighted) |
| THD+N |
Hi-Z Inputs:
-111 dB / 0.00014%
Line Inputs:
-115 dB
Line Outputs:
-117 dB
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms) |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
A/D Conversion:
1.1 ms at 96 kHz |
| Sync Sources |
S/PDIF |
| Clocking |
Internal:
|
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Port |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz (1.2 A) |
| AC/DC Power Adapter |
12 VDC |
| Power Consumption |
19 W |
Physical
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
9.17 x 0.23 x 0.1" / 232.98 x 5.87 x 2.51 mm |
| Weight |
3.2 lb / 1.5 kg |
Packaging Info
| Package Weight |
4.235 lb |
| Box Dimensions (LxWxH) |
8.7 x 8.2 x 5.5" |
Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Studio+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
10 Inputs / 6 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input |
| Host Connection |
1x USB-C (Class-Compliant) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
10 Inputs / 6 Outputs |
| Built-In DSP |
Quad-Core |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Built-In Microphone |
No |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
-20 dB |
| High-Pass Filter |
75 Hz |
| Solo/Mute |
No |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V |
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input |
| Host Connection |
1x USB-C (Class-Compliant) |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
No |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
20 Hz to 20 kHz ±0.05 dB |
| Maximum Output Level |
Monitor Outputs:
20.2 dBu |
| Headphone Output Power |
68 mW into 300 Ohms
38 mW into 600 Ohms |
| Impedance |
Headphone Outputs:
300 to 600 Ohms |
| Dynamic Range |
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Line Outputs:
128 dB
Monitor Outputs:
129 dB (A-Weighted) |
| THD+N |
Hi-Z Inputs:
-111 dB / 0.00014%
Line Inputs:
-115 dB
Line Outputs:
-117 dB
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms) |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
A/D Conversion:
1.1 ms at 96 kHz |
| Sync Sources |
S/PDIF |
| Clocking |
Internal:
|
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Port |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz (1.2 A) |
| AC/DC Power Adapter |
12 VDC |
| Power Consumption |
19 W |
Physical
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
9.17 x 0.23 x 0.1" / 232.98 x 5.87 x 2.51 mm |
| Weight |
3.2 lb / 1.5 kg |
Packaging Info
| Package Weight |
4.27 lb |
| Box Dimensions (LxWxH) |
8.6 x 8.5 x 5.5" |
Universal Audio Apollo Twin X USB DUO Heritage Edition USB-C Audio Interface with UAD DSP
Rated 0 out of 5
0 Reviews| Computer Connection | USB-C (Windows only) |
| Simultaneous I/O | 10 x 06 |
| A/D Resolution | 24-bit/192kHz |
| Built-in DSP/FX | UAD-2 Duo Core Processing, Realtime UAD Powered Plug-ins |
| Audio Input Types | 2 x XLR-1/4" combo (mic/line), 1 x 1/4" (Hi-Z) |
| Audio Output Types | 2 x 1/4" (monitor), 2 x 1/4" (line out), 1 x 1/4" TRS (headphones) |
| Digital Input Types | 1 x Optical Toslink (ADAT,S/PDIF) |
| No. of Mic Preamps | 2 x mic, 1 x instrument |
| Phantom Power | Yes |
| Bus Powered | No |
| Rack Unit | No |
| H x W x D | 2.6" x 6.31" x 6.20" |
| Weight | 1.1 kg |
| Any other features? | UAD Realtime Analog Classics Plug-in Bundle (VST, AAX 64) included. |
Universal Audio Apollo x16 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 |
| Simultaneous I/O | 18 x 20 |
| A/D Resolution | 24bit/192kHz |
| Built-in DSP/FX | Yes |
| Audio Input Types | 2 x DB-25 (line) |
| Audio Output Types | 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround), 2 x 1/4" (headphones) |
| Digital Input Types | 1 x XLR (AES/EBU) |
| Digital Output Types | 1 x XLR (AES/EBU) |
| MIDI I/O | 2 x USB-C (Thunderbolt 3) |
| Bus Powered | No. 12V DC power supply included |
| Rack Unit | Yes |
| H x W x D | 1.75" x 19" x 13.5" |
| Weight | 3.9 kg |
| Any other features? | includes UA Essentials+ Plug-in Suite. HEXA Core Processor. Clock In/Out (75 ohm termination switch) |
Universal Audio Apollo x16 Gen 2 Thunderbolt 3 Audio Interface with Ultimate+ Bundle
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 |
| Simultaneous I/O | 18 x 20 |
| A/D Resolution | 24bit/192kHz |
| Built-in DSP/FX | Yes |
| Audio Input Types | 2 x DB-25 (line) |
| Audio Output Types | 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround), 2 x 1/4" (headphones) |
| Digital Input Types | 1 x XLR (AES/EBU) |
| Digital Output Types | 1 x XLR (AES/EBU) |
| MIDI I/O | 2 x USB-C (Thunderbolt 3) |
| Bus Powered | No. 12V DC power supply included |
| Rack Unit | Yes |
| H x W x D | 1.75" x 19" x 13.5" |
| Weight | 3.9 kg |
| Any other features? | includes UA Ultimate+ Plug-in Suite. HEXA Core Processor. Clock In/Out (75 ohm termination switch) |
Universal Audio Apollo x16D Essentials+ Rackmount Thunderbolt 3 Audio Interface with Dante
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
Analog:
18 Inputs / 20 Output at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
Analog:
18 Inputs / 20 Output at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Outputs |
| Built-In DSP |
6x SHARC |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Built-In Microphone |
(Talkback) |
Signal Processing
| Pad |
No |
| High-Pass Filter |
No |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Phantom Power |
No |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
2x RJ45 AES67 / Dante (Gigabit) |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Output Level |
Monitor Outputs:
+24 dBu (+4 dBu)
+10 dBV (-10 dBV) |
| Impedance |
Monitor Outputs:
100 Ohms
Word Clock :
75 Ohms |
| Dynamic Range |
Monitor Outputs:
133 dBA |
| THD+N |
Monitor Outputs:
-129 dB / 0.000037% (1 kHz, at -1 dBFS) |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1 ms at 96 kHz (Over Thunderbolt) |
| Sync Sources |
AES3, Dante, Internal, Word Clock |
| Clocking |
Word Clock:
Input Termination: 75 Ohms (Switchable)
Lock Range: 44.1 to 192 kHz ±4% of Sample Rate
|
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
macOS 10.15 to 14 / Windows 10 or Later |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Storage Requirements |
25 GB (100 GB Recommended) |
| Mobile App Compatible |
No |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Cable |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A (Included) |
| Power Consumption |
30 W (Typical)
72 W (Maximum) |
Physical
| Rackmount Size |
1 RU |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.0 lb / 3.6 kg |
Packaging Info
| Package Weight |
16.31 lb |
| Box Dimensions (LxWxH) |
22.9 x 18.3 x 7.8" |
Universal Audio Apollo x16D Ultimate+ Rackmount Thunderbolt 3 Audio Interface with Dante
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
Analog:
18 Inputs / 20 Outputs at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Output |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
Analog:
18 Inputs / 20 Outputs at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Outputs |
| Built-In DSP |
Yes |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Built-In Microphone |
(Talkback) |
Signal Processing
| Pad |
No |
| High-Pass Filter |
No |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Phantom Power |
No |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
2x RJ45 AES67 / Dante (Gigabit) |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Output Level |
Monitor Outputs:
+24 dBu (+4 dBu)
+10 dBV (-10 dBV) |
| Impedance |
Monitor Outputs:
100 Ohms
Word Clock :
75 Ohms |
| Dynamic Range |
Monitor Outputs:
133 dBA |
| THD+N |
Monitor Outputs:
-129 dB / 0.000037% (1 kHz, at -1 dBFS) |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1 ms at 96 kHz (Over Thunderbolt) |
| Sync Sources |
AES3, Dante, Internal, Word Clock |
| Clocking |
Word Clock:
Input Termination: 75 Ohms (Switchable)
Lock Range: 44.1 to 192 kHz ±4% of Sample Rate
|
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
macOS 10.15 to 14 / Windows 10 or Later |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Storage Requirements |
25 GB (100 GB Recommended) |
| Mobile App Compatible |
No |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Cable |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A (Included) |
| Power Consumption |
30 W (Typical)
72 W (Maximum) |
Physical
| Rackmount Size |
1 RU |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.0 lb / 3.6 kg |
Packaging Info
| Package Weight |
15.99 lb |
| Box Dimensions (LxWxH) |
23.3 x 17.1 x 7.8" |
Universal Audio Apollo x16D Ultimate+ Rackmount Thunderbolt 3 Audio Interface with Dante
Rated 0 out of 5
0 Reviews| Channels of I/O |
Analog:
18 Inputs / 20 Outputs at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
Analog:
18 Inputs / 20 Outputs at 192 kHz
Digital:
2 Inputs / 2 Outputs at 192 kHz
Dante:
16 Inputs / 16 Outputs |
| Built-In DSP |
Yes |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
No |
| Built-In Microphone |
(Talkback) |
Signal Processing
| Pad |
No |
| High-Pass Filter |
No |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Balanced Monitor Output (DC-Coupled) |
| Phantom Power |
No |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection |
2x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
2x RJ45 AES67 / Dante (Gigabit) |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Output Level |
Monitor Outputs:
+24 dBu (+4 dBu)
+10 dBV (-10 dBV) |
| Impedance |
Monitor Outputs:
100 Ohms
Word Clock :
75 Ohms |
| Dynamic Range |
Monitor Outputs:
133 dBA |
| THD+N |
Monitor Outputs:
-129 dB / 0.000037% (1 kHz, at -1 dBFS) |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1 ms at 96 kHz (Over Thunderbolt) |
| Sync Sources |
AES3, Dante, Internal, Word Clock |
| Clocking |
Word Clock:
Input Termination: 75 Ohms (Switchable)
Lock Range: 44.1 to 192 kHz ±4% of Sample Rate
|
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
macOS 10.15 to 14 / Windows 10 or Later |
| OS Compatibility |
macOS 10.15 to 14
Windows 10 to 11 (64-Bit Only) |
| Storage Requirements |
25 GB (100 GB Recommended) |
| Mobile App Compatible |
No |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Cable |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A (Included) |
| Power Consumption |
30 W (Typical)
72 W (Maximum) |
Physical
| Rackmount Size |
1 RU |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.0 lb / 3.6 kg |
Packaging Info
| Package Weight |
15.99 lb |
| Box Dimensions (LxWxH) |
23.3 x 17.1 x 7.8" |
Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
12 Inputs / 18 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
4 |
| Analog Audio I/O |
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support) |
| Host Connection |
1x USB-C (Class-Compliant) |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
12 Inputs / 18 Outputs |
| Built-In DSP |
Quad-Core |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
4 |
| Built-In Microphone |
No |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
-20 dB |
| Gain/Trim Range |
Mic/Line Inputs:
+10 to +65 dB |
| High-Pass Filter |
75 Hz |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V |
| Digital Audio I/O |
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support) |
| Host Connection |
1x USB-C (Class-Compliant) |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
No |
| Sync I/O |
No |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Line Outputs:
20 Hz to 20 kHz 0.05 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.01 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.04 dB |
| Maximum Input Level |
Mic Inputs:
25 dBu (Pad On)
Line Inputs:
20.2 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.4 dBu (at Minimum Gain) |
| Maximum Output Level |
Line Outputs:
20.2 dBu (Reference Level at +4 dBu)
14.5 dBu (Reference Level at -10 dBu)
Headphone Outputs:
15.4 dBu (300 Ohms Load)
15.8 dBu (600 Ohms Load)
Monitor Outputs:
20.2 dBu |
| Headphone Output Power |
68 mW into 300 Ohms
38 mW into 600 Ohms |
| Impedance |
Mic Inputs:
5.4 Kilohms
Line/Monitor Outputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm |
| Dynamic Range |
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Mic Inputs:
123 dB (A-Weighted)
Headphone Outputs:
124 dB (A-Weighted)
Line Outputs:
128 dB (A-Weighted)
Monitor Outputs:
129 dB (A-Weighted) |
| THD+N |
Mic Inputs:
-117 dB / 0.00014%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-117 dB / 0.00014%
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms) |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
A/D Conversion:
1.1 ms at 96 kHz |
| Sync Sources |
ADAT, Internal, S/PDIF |
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
| Required Hardware |
Thunderbolt 3 Port |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz (1.2 A) |
| AC/DC Power Adapter |
12 VDC |
| Power Consumption |
19 W |
Physical
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
9.17 x 5.87 x 2.51" / 23.29 x 14.91 x 6.38 cm
9.17 x 6.12 x 2.51" / 23.29 x 15.54 x 6.38 cm (Including Controls and Protrusions) |
| Weight |
3.2 lb / 1.5 kg |
Packaging Info
| Package Weight |
5.75 lb |
| Box Dimensions (LxWxH) |
11.5 x 8.9 x 5.2" |
Universal Audio Apollo x6 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
16 Inputs / 22 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
6x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
6x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
|
| Host Connection |
1x USB-C |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
16 Inputs / 22 Outputs |
| Built-In DSP |
Yes |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Built-In Microphone |
(Talkback) |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
Mic:
-20 dB (Switchable per Channel) |
| Gain/Trim Range |
Mic/Line/Hi-Z Inputs:
+10 dB to +65 dB |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
6x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
6x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V, Selectable On/Off |
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output |
| Host Connection |
1x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
1x USB-C (Device Connection) |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Mic, Line Inputs:
20 Hz to 20 kHz ±0.07 dB
Line Outputs:
20 Hz to 20 kHz ±0.05 dB
Hi-Z Inputs:
20 Hz to 20 kHz ±0.08 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.02 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Input Level |
Mic Inputs:
26 dBu (Pad On)
Line Inputs:
24 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.6 dBu (at Minimum Gain) |
| Maximum Output Level |
Line Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBu (Reference Level at -10 dBv)
Headphone Outputs:
17.8 dBu (300 Ohms Load, 1 kHz at 16.8 dBu, -1 dBFS)
18.3 dBu (600 Ohms Load, 1 kHz at 17.3 dBu, -1 dBFS))
Monitor Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBV (Reference Level at -10 dBv) |
| Headphone Output Power |
120 mW into 300 Ohms
67 mW into 600 Ohms |
| Impedance |
Mic Inputs:
5.4 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
100 Ohms
Hi-Z Inputs:
1 Megohm
Monitor Outputs:
100 Ohms
Word Clock Inputs:
75 Ohms |
| Dynamic Range |
Hi-Z Inputs:
122 dBA
Line Inputs:
124 dBA
Mic Inputs:
123 dBA
Headphone Outputs:
126 dBA
Line Outputs:
127 dBA
Monitor Outputs:
130 dBA |
| THD+N |
Mic Inputs:
-115 dB / 0.00018%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-116 dB / 0.00016%
Line Outputs:
-119 dB / 0.00011%
Monitor Outputs:
-127 dB / 0.000045%
Headphone Outputs:
-117 dB / 0.00014%
-118 dB / 0.00013% |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1.1 ms at 96 kHz |
| Sync Sources |
ADAT, Internal, S/PDIF, Word Clock |
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A |
| Power Consumption |
72 W
30 W (Typical) |
Physical
| Rackmount Size |
1 RU (with Included Hardware) |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only)
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.7 lb / 3.9 kg |
Packaging Info
| Package Weight |
16.785 lb |
| Box Dimensions (LxWxH) |
23.6 x 17.1 x 8" |
Universal Audio Apollo x6 Gen 2 Thunderbolt 3 Audio Interface with Studio+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
16 Inputs / 22 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
6x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
6x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
|
| Host Connection |
1x USB-C |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
16 Inputs / 22 Outputs |
| Built-In DSP |
Yes |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Built-In Microphone |
(Talkback) |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
Mic:
-20 dB (Switchable per Channel) |
| Gain/Trim Range |
Mic/Line/Hi-Z Inputs:
+10 dB to +65 dB |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
6x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
6x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V, Selectable On/Off |
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output |
| Host Connection |
1x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
1x USB-C (Device Connection) |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Mic, Line Inputs:
20 Hz to 20 kHz ±0.07 dB
Line Outputs:
20 Hz to 20 kHz ±0.05 dB
Hi-Z Inputs:
20 Hz to 20 kHz ±0.08 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.02 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Input Level |
Mic Inputs:
26 dBu (Pad On)
Line Inputs:
24 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.6 dBu (at Minimum Gain) |
| Maximum Output Level |
Line Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBu (Reference Level at -10 dBv)
Headphone Outputs:
17.8 dBu (300 Ohms Load, 1 kHz at 16.8 dBu, -1 dBFS)
18.3 dBu (600 Ohms Load, 1 kHz at 17.3 dBu, -1 dBFS))
Monitor Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBV (Reference Level at -10 dBv) |
| Headphone Output Power |
120 mW into 300 Ohms
67 mW into 600 Ohms |
| Impedance |
Mic Inputs:
5.4 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
100 Ohms
Hi-Z Inputs:
1 Megohm
Monitor Outputs:
100 Ohms
Word Clock Inputs:
75 Ohms |
| Dynamic Range |
Hi-Z Inputs:
122 dBA
Line Inputs:
124 dBA
Mic Inputs:
123 dBA
Headphone Outputs:
126 dBA
Line Outputs:
127 dBA
Monitor Outputs:
130 dBA |
| THD+N |
Mic Inputs:
-115 dB / 0.00018%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-116 dB / 0.00016%
Line Outputs:
-119 dB / 0.00011%
Monitor Outputs:
-127 dB / 0.000045%
Headphone Outputs:
-117 dB / 0.00014%
-118 dB / 0.00013% |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1.1 ms at 96 kHz |
| Sync Sources |
ADAT, Internal, S/PDIF, Word Clock |
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A |
| Power Consumption |
72 W
30 W (Typical) |
Physical
| Rackmount Size |
1 RU (with Included Hardware) |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only)
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.7 lb / 3.9 kg |
Packaging Info
| Package Weight |
16.805 lb |
| Box Dimensions (LxWxH) |
23.6 x 18.8 x 7.9" |
Universal Audio Apollo x8 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
Rated 0 out of 5
0 ReviewsKey Specs
| Channels of I/O |
18 Inputs / 24 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
4 |
| Analog Audio I/O |
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
8x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output
|
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
|
| Host Connection |
1x USB-C |
| Power Requirements |
AC/DC Power Adapter (Included) |
| Channels of I/O |
18 Inputs / 24 Outputs |
| Built-In DSP |
Yes |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
4 |
| Built-In Microphone |
(Talkback) |
| Input Level Adjustment |
1x Knob |
Signal Processing
| Pad |
Mic:
-20 dB (Switchable per Channel) |
| Gain/Trim Range |
Mic/Line/Hi-Z Inputs:
+10 dB to +65 dB |
| Solo/Mute |
Mute per Master |
Connectivity
| Analog Audio I/O |
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TRS Balanced Line Input
2x 1/4" TS Unbalanced Hi-Z Input
8x 1/4" TRS Unbalanced Line Output
2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
48 V, Selectable On/Off |
| Digital Audio I/O |
2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
2x Mini-TOSLINK / 3.5 mm Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output |
| Host Connection |
1x USB-C |
| Host Connection Protocol |
Thunderbolt 3 |
| USB (Non-Host) |
1x USB-C (Device Connection) |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
No |
| MIDI I/O |
No |
| Expansion Slots |
No |
| Wireless |
No |
Performance
| Frequency Response |
Mic, Line Inputs:
20 Hz to 20 kHz ±0.07 dB
Line Outputs:
20 Hz to 20 kHz ±0.05 dB
Hi-Z Inputs:
20 Hz to 20 kHz ±0.08 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.02 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB |
| Maximum Input Level |
Mic Inputs:
26 dBu (Pad On)
Line Inputs:
24 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.6 dBu (at Minimum Gain) |
| Maximum Output Level |
Line Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBu (Reference Level at -10 dBv)
Headphone Outputs:
17.8 dBu (300 Ohms Load, 1 kHz at 16.8 dBu, -1 dBFS)
18.3 dBu (600 Ohms Load, 1 kHz at 17.3 dBu, -1 dBFS))
Monitor Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBV (Reference Level at -10 dBv) |
| Headphone Output Power |
120 mW into 300 Ohms
67 mW into 600 Ohms |
| Impedance |
Mic Inputs:
5.4 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
100 Ohms
Hi-Z Inputs:
1 Megohm
Monitor Outputs:
100 Ohms
Word Clock Inputs:
75 Ohms |
| Dynamic Range |
Hi-Z Inputs:
122 dBA
Line Inputs:
124 dBA
Mic Inputs:
123 dBA
Headphone Outputs:
126 dBA
Line Outputs:
127 dBA
Monitor Outputs:
130 dBA |
| THD+N |
Mic Inputs:
-115 dB / 0.00018%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-116 dB / 0.00016%
Line Outputs:
-119 dB / 0.00011%
Monitor Outputs:
-127 dB / 0.000045%
Headphone Outputs:
-117 dB / 0.00014%
-118 dB / 0.00013% |
Digital Audio
| Sample Rates |
Up to 192 kHz |
| Sample Rate Conversion |
No |
| Bit Depths |
24-Bit |
| Latency |
1.1 ms at 96 kHz |
| Sync Sources |
ADAT, Internal, S/PDIF, Word Clock |
Audio Storage & Playback
| Media/Memory Card Slot |
No |
Compatibility
| OS Compatibility |
Windows / macOS |
| Mobile Device Compatibility |
No |
Power
| Power Requirements |
AC/DC Power Adapter (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter |
12 VDC at 6 A |
| Power Consumption |
72 W
30 W (Typical) |
Physical
| Rackmount Size |
1 RU (with Included Hardware) |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only)
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions) |
| Weight |
8.8 lb / 4.0 kg |
Packaging Info
| Package Weight |
16.855 lb |
| Box Dimensions (LxWxH) |
23.6 x 17.3 x 7.9" |
Universal Audio Apollo x8 Gen 2 Thunderbolt 3 Audio Interface with Studio+ Bundle
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 |
| Simultaneous I/O | 18 x 24 |
| A/D Resolution | 24bit/192kHz |
| Built-in DSP/FX | Yes |
| Audio Input Types | 4 x XLR (mic/line), 2 x 1/4" (Hi-Z), 8 x 1/4" (line) |
| Audio Output Types | 2 x 1/4" (monitor), 8 x 1/4" (alt/7.1 surround), 2 x 1/4" (headphones) |
| Digital Input Types | 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX) |
| Digital Output Types | 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX) |
| No. of Mic Preamps | 4 x mic, 2 x instrument |
| Phantom Power | Yes |
| MIDI I/O | 2 x USB-C (Thunderbolt 3) |
| Bus Powered | No. 12V DC power supply included |
| Rack Unit | Yes |
| H x W x D | 1.75" x 19" x 13.5" |
| Weight | 4 kg |
| Any other features? | includes UA Studio+ Plug-in Suite. HEXA Core Processor. Clock In/Out (75 ohm termination switch) |
Universal Audio Apollo x8p Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
Rated 0 out of 5
0 Reviews| Computer Connection | Thunderbolt 3 |
| Simultaneous I/O | 16 x 22 |
| A/D Resolution | 24bit/192kHz |
| Built-in DSP/FX | Yes |
| Audio Input Types | 8 x XLR-1/4" combo (mic/line), 2 x 1/4" (Hi-Z), 1 x DB-25 (line) |
| Audio Output Types | 2 x 1/4" (monitor), 1 x DB-25 (alt/5.1 surround), 2 x 1/4" (headphones) |
| Digital Input Types | 2 x Optical Toslink (ADAT/SMUX) |
| Digital Output Types | 2 x Optical Toslink (ADAT/SMUX) |
| No. of Mic Preamps | 8 x mic, 2 x instrument |
| Phantom Power | Yes |
| MIDI I/O | 2 x USB-C (Thunderbolt 3) |
| Bus Powered | No. 12V DC power supply included |
| Rack Unit | Yes |
| H x W x D | 1.75" x 19" x 13.5" |
| Weight | 4 kg |
| Any other features? | includes UA Essentials+ Plug-in Suite. HEXA Core Processor. Clock In/Out (75 ohm termination switch) |
Showing 40 of 53 results
